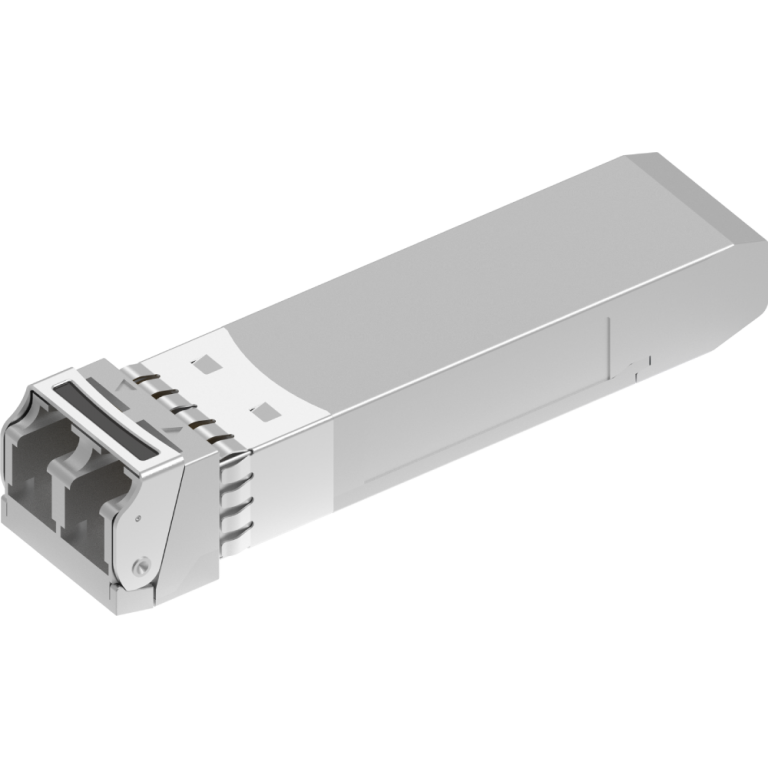

Full-duplex transceiver module in SFP28 hot-pluggable form factor
Single channel 850nm VCSEL and PIN
Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-SR Ethernet transmission protocols
Supports transmission rates up to 25.78125Gbps
Transmission over 1 pair of multimode fiber up to 70m (OM3) or 100m (OM4)
Optional dual-rate version compatible with CPRI Option 10 and 25GE
Power consumption of less than 1W
Dual LC optical connectors
Commercial and industrial grade operating temperature ranges available
Operates at a voltage of 3.3V
Compliant with RoHS environmental standards (lead-free)
| Parameter | Value |
| Media Type: | Multi-Mode Fiber (MMF) |
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 5.3 dB |
| Maximum Distance: | 100m |
| Supported Data Rate: | 8.5-28.1Gbps |
| Supported Applications: | 25G Ethernet, 10G Ethernet |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -5 dB |
| Maximum Transmitting Power: | 2.4 dB |
| Receiver Sensitivity: | -10.3 dBm |
| Receiver Overload: | 2.4 dBm |
| Dispersion: | N/A |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | -3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
